New Insights into Cellular Defects during Haematopoiesis of Sickle Cell Disease Using the Townes Mouse Model

Sickle cell disease (SCD) is an inherited disorder caused by a point mutation in the β globin gene leading to the synthesis of an abnormal haemoglobin (HbS), that under low oxygen tension polymerises driving the sickling of red blood cells and reducing their lifespan. SCD is characterized by anaemia, vaso-occlusion and haemolysis, progressive multiorgan damage and increased mortality. For decades, peripheral haemolysis has been considered as the sole driver of anaemia in SCD. Recently, we have demonstrated the occurrence of ineffective erythropoiesis (IE) in SCD suggesting that anaemia can be impacted by defects of central origin and hinting to abnormalities in the haematopoietic compartment.

To gain insight into SCD haematopoiesis, we investigated the haematopoietic compartment of the humanized transgenic Townes mouse model by conducting an in-depth flow cytometry-based analysis in the bone marrow (BM) and spleen, comparing SS mice to control littermates (AA and AS) at 8 and 16 weeks of age (termed 8-w and 16-w, respectively).

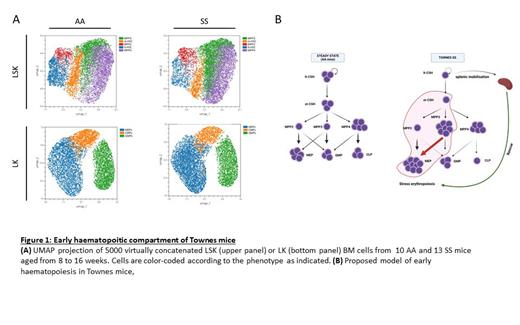

BM and spleen are two key hematopoietic tissues in adult mice: BM is involved in maintaining homeostatic haematopoiesis and spleen responds to stress haematopoiesis. First, we assessed haematopoietic differentiation in the BM of SS, AA and AS mice. Total number of BM cells and frequency of Lin ^Neg and Lin ^NegKit ^Pos (LK) were identical between SS and control littermates whereas a minor increase in the percentages of Lin ^NegSca ^PosKit ^Pos (LSK) was observed in 16-w SS mice. Within the LSK compartment, we found a 1.81- and 2.5-fold reduction of long-term haematopoietic stem cell (lt-HSC) frequency in 8-w and 16-w SS mice, respectively (Fig1 A). HSCs differentiate into multipotent progenitors (MPPs), which have decreased self-renewal capacity and progressively engage in the megakaryocytic (MPP2), myeloid-biased (MPP3), or lymphoid-biased (MPP4) lineage. The MPP3 compartment showed a 1.6-fold increased frequency in 8-w and 16-w SS mice indicating a skewing toward myeloid cell production and the onset of extramedullary haematopoiesis as early as 8 weeks after birth (Fig1 A). Next, we analysed the downstream lineages of the committed progenitors (lymphoid, granulo-macrophagic, megakaryocytic, and erythroid) and found a 1.4 and 2.3-fold increase of th megakaryocyte-erythroid progenitor cells (MEPs) and pre-CFU-Es in 8-w and 16-w SS mice, respectively (Fig1 A,B). We assessed the potential of SS hematopoietic progenitors (HSPCs) to differentiate into myelomonocytic and erythroid lineages by performing methylcellulose colony forming unit (CFU) assays with LSK and LK cells sorted from 8-w mice. Although no difference was observed in the number and type of colonies formed in vitro from SS and control HSPCs, SS colonies were much smaller than the AA/AS ones. Furthermore, serial replating showed a phenotype of stemness exhaustion in SS mice, with a dramatic decrease in the number of colonies formed by LSK cells (27.5 SS CFUs vs 51.6 AA/AS CFUs), suggesting lower self-renewal capacities of SS HSPCs.

In spleen, in addition to the expected splenomegaly of SS mice, we found a trend toward a decreased frequency of the LSK compartment and an increase of the LK compartment. There was a 2.25- and 1.42-fold increase in the percentage of MPP-2 and MPP-3 cells, respectively, and a 2.1-fold increase in the pre-CFU-Es confirming an intense splenic haematopoiesis in SS mice (Fig 1B).

HSPCs are known to be retained by the BM stromal cells through the chemotactic interaction of CXCL12 and CXCR4 and the adhesive interaction of VCAM-1 and VLA-4. Measuring HSC-related cytokines in BM supernatants, we found severely diminished levels of CXCL12 in SS mice as compared to control littermates (18 pg.mL ^-1 in SS vs 84 pg.mL ^-1 in AA; N=80), suggesting HSC mobilization from the BM to the spleen with disease onset.

In addition to the well-established stress erythropoiesis phenotype reported in SCD mice, our study describes cellular abnormalities in the haematopoietic compartment shedding light on potential new mechanisms that contribute to SCD pathology in relation to anaemia and bone marrow stemness.
